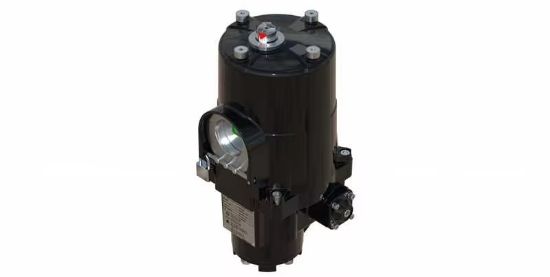

EXC R Type Explosion-Proof Electric Actuator

This high-performance actuator features a torque range of 88.5 in-lb to 26,552 in-lb and supports multiple voltage options (24 VDC/AC, 110 VAC, 220 VAC, 380 VAC, 440 VAC). Designed for continuous duty operation, it operates effectively in extreme temperatures from -40°F to 140°F. The actuator is equipped with a durable supercapacitor, ensuring 100,000 reliable cycles, and offers customizable settings through its operation panel. With an IP67 rating and optional IP68, it is built to withstand harsh environments, making it ideal for a variety of industrial applications.

Be the first to review this product

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Product Specifications

Torque:
88.5 in-lb ~ 26,552 in-lb (10 N·m ~ 3000 N·m)
Voltage Options:
24 VDC/AC, 110 VAC, 220 VAC, 380 VAC, 440 VAC
Duty Cycle:
Continuous running duty type (IEC 60034-1) S1 100%
Environmental Temperature:
-40°F ~ 140°F (-40°C ~ 60°C)
Surface Temperature:
≤ 185°F (85°C)
Humidity:
≤ 95% (122°F)
Supercapacitor:
Safe reset at Open, Close, Retain, User-defined position
Approved by CSA Group for 100,000 cycles (90° stroke) supercapacitor life test
IP Grade:
IP67, Customized IP68
Corrosion Resistance:
Standard C3-02 (ISO 12944), optional for C3 ~ C5
Service life of 5-15 years in ocean areas
Service Life:
100,000 cycles (1 cycle = 0° - 90° - 0°)
Operation Panel:
Multiple functions can be set through the panel, including:
- Calibrate open position
- Close position
- Middle position
- Local mode
- Stop
Optional Special Functions:
Deceleration, timer, sensor data collection, and more
Vibration-Proof Performance:
- Train Vibration: Frequency 5-1200 Hz, Acceleration 1.5g, Duration 24H
- Road Bumps: Frequency 5-100 Hz, Acceleration 10g, Duration 0.5H
- Earthquake: Acceleration 10g, 13 ms duration, 125 shocks in both directions
